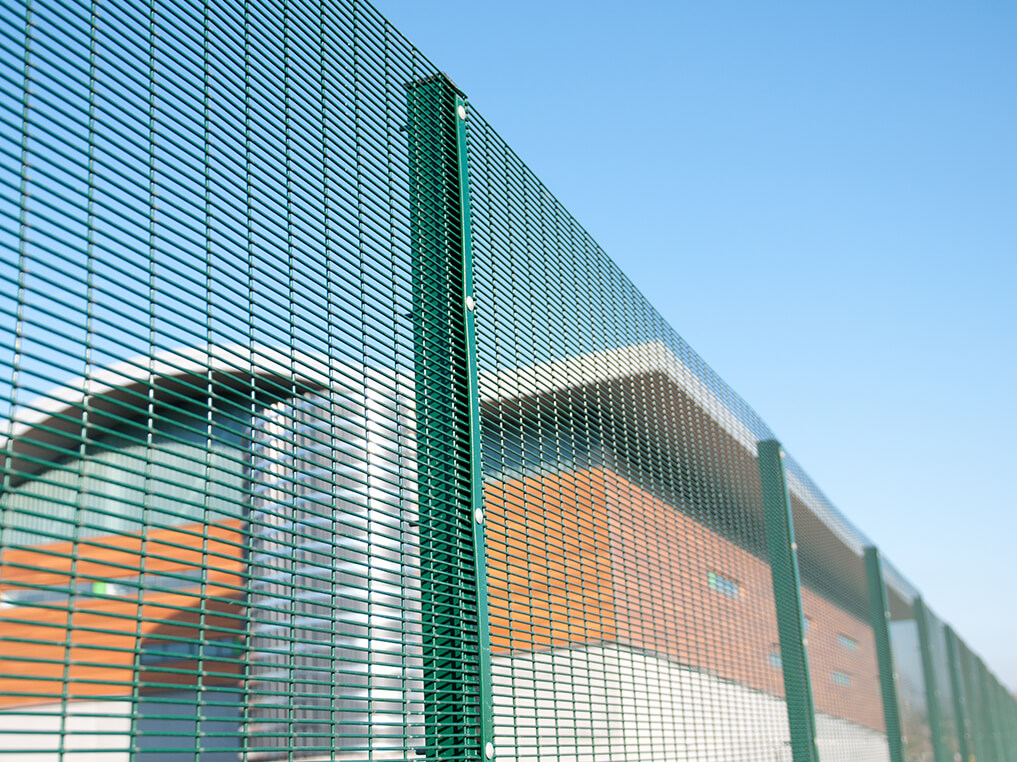

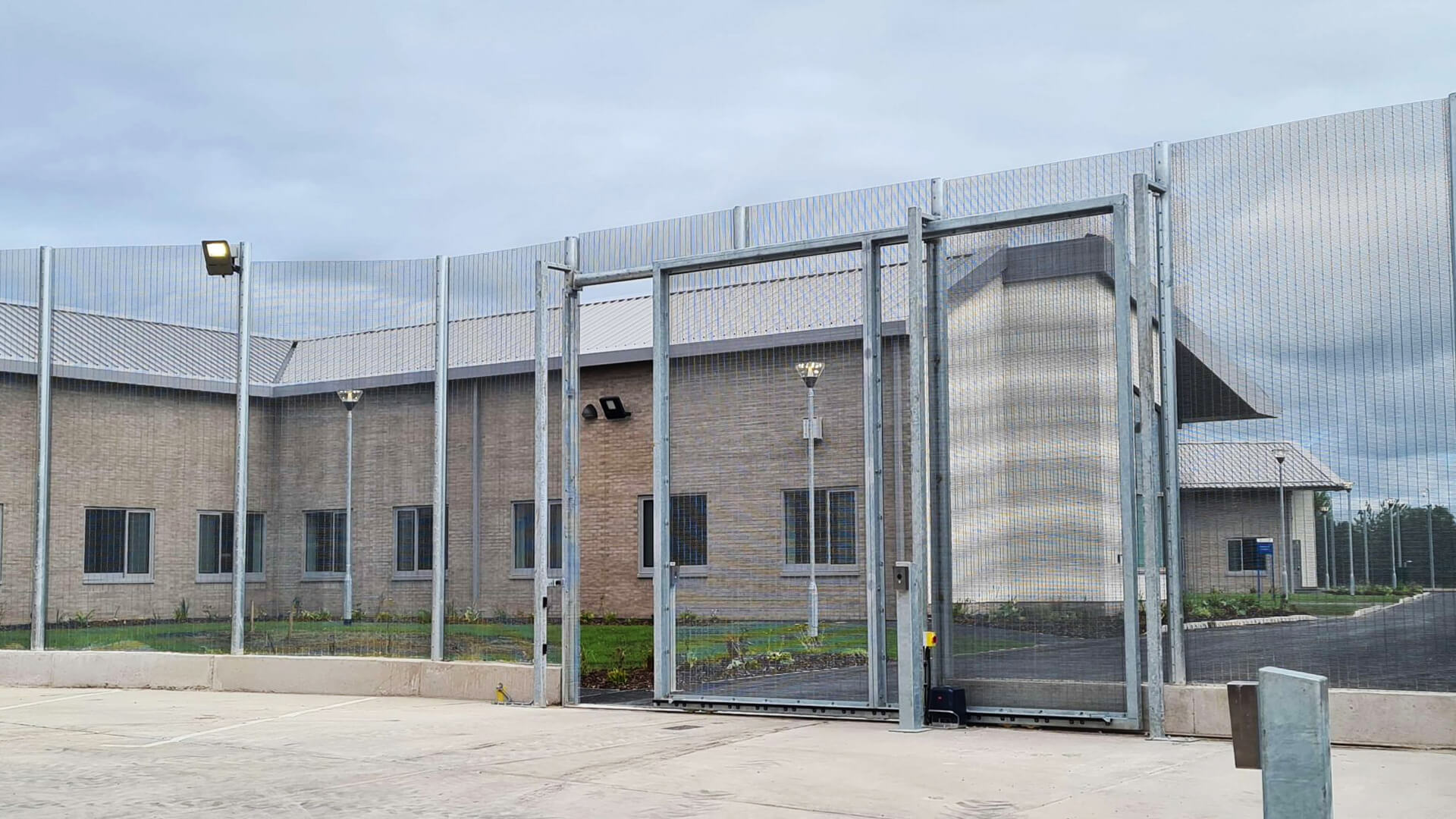

358 Security Prison Mesh

Used for the highest-security applications requiring maximum protection, including Prisons, Military Bases, Government Sites, Airports, Utilities, and Industrial Facilities. Its close, welded mesh ensures exceptional strength, anti-climb protection, and clear surveillance visibility.

358 Security Prison Mesh

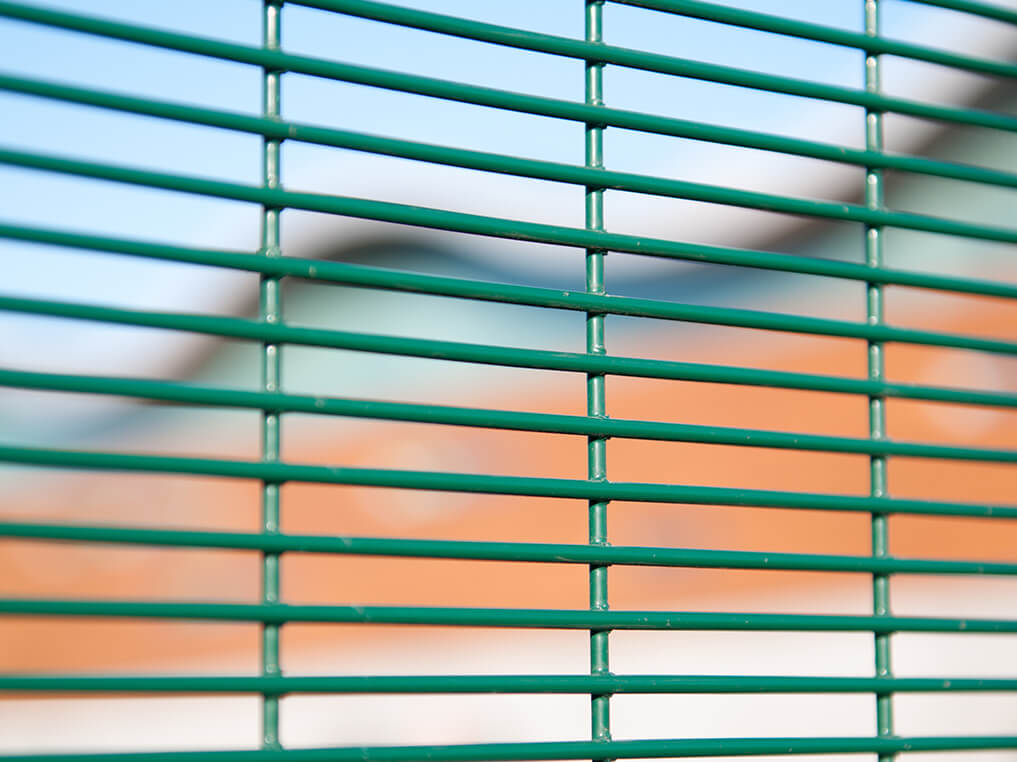

358 Security Prison Mesh, often referred to as “prison mesh” or “anti-climb mesh,” is a high-security fencing system designed for applications where maximum security and visibility are critical. The name “358” comes from its dimensions: the mesh openings measure 3″ x 0.5″ (76.2mm x 12.7mm) and are created using 8-gauge (4mm) wire. This design provides excellent resistance to tampering, cutting, and climbing, making it a trusted choice for high-security environments.

358 Security Prison Mesh is a trusted, high-performance fencing option for protecting sensitive sites. Its anti-climb, anti-cut design ensures maximum perimeter security while allowing clear visibility for surveillance. Though it may require a higher initial investment, its durability and effectiveness make it a cost-efficient solution for high-security needs over time.

Sectors

358 Security Prison Mesh is typically used in the sectors listed below:

Commercial

Custodial

Education

Industrial

Medical

Utilities

Transport

Technical Specifications

Here’s a breakdown of the 358 Security Prison Mesh, including all essential details, specifications, and pros and cons.

Key Specifications of 358 Security Prison Mesh

  • Material: Heavy-duty steel wires, welded for strength and durability.
  • Mesh Aperture: 76.2mm x 12.7mm (3″ x 0.5″), preventing climbing and tampering.
  • Wire Thickness: 4mm (8-gauge) for enhanced resistance to cutting and force.
  • Finish: Hot-dip galvanised or powder-coated for corrosion resistance and longevity.
  • Anti-Climb Design: Narrow apertures eliminate footholds, deterring climbing attempts.
  • Anti-Cut Properties: Heavy-gauge wires make cutting extremely difficult with standard tools.
  • Height Options: Available in various heights, typically ranging from 2m to 6m or more.
  • Visibility: Clear visibility through the mesh for effective CCTV and monitoring.
  • Fixings: Secured with tamper-resistant fixings to steel posts for added security.
  • Compliance Standards: Often meets LPCB (Loss Prevention Certification Board) and CPNI (Centre for the Protection of National Infrastructure) standards.
  • Customisation: Optional enhancements, such as razor wire or electric fencing, can be added for higher security needs.

Available 358 Security Prison Mesh Sizes and Options

Fence Heights Fence Widths Post Size Post Fixing Colour
1803mm 2440mm 60x60mm 30x5mm Clamp Bar Optional*
2007mm 2440mm 60x60mm 30x5mm Clamp Bar Optional*
2438mm 2440mm 60x60mm 30x5mm Clamp Bar Optional*
3000mm 2440mm 80x40mm 30x5mm Clamp Bar Optional*
4204mm 2440mm 100x50mm 30x5mm Clamp Bar Optional*
5207mm 2440mm 120x60mm 30x5mm Clamp Bar Optional*
*Available as standard in Green RAL 6005 & Black RAL 9005 but we can accommodate many other colours.

Pros and Cons of 358 Security Prison Mesh

Pros

  1. Maximum Security: Resists cutting, climbing, and tampering, offering reliable protection for high-risk sites.
  2. Durability: Constructed from robust materials and treated to withstand harsh weather conditions, ensuring a long lifespan.
  3. Visibility: Despite its dense construction, the mesh allows clear visibility for surveillance systems and human monitoring.
  4. Anti-Climb Design: Small apertures prevent climbing, making it ideal for high-security perimeters.
  5. Versatility: Suitable for a range of applications, including prisons, military sites, power stations, and schools.
  6. Customisable: Available in various heights and finishes to suit different requirements.
  7. Low Maintenance: Resistant to corrosion and wear, reducing maintenance costs over time.

Cons

  1. Cost: Higher initial investment compared to standard fencing options due to its high-specification materials and features.
  2. Installation Complexity: Requires skilled professionals for installation, which can add to the overall cost.
  3. Rigid Design: Its inflexibility may limit use in applications requiring more adaptable fencing.
  4. Aesthetic Considerations: Industrial appearance may not be suitable for residential or decorative purposes.
  5. Over-Specification for Some Sites: May be excessive for low-risk areas where basic security measures would suffice.

FAQs

You may have questions about our services or this product. We’ve provided answers to many common queries here, but if you need more information, simply request a call back from one of our experts. They’ll be happy to assist you and address all your concerns over the phone.

Q. What is 358 Security Prison Mesh used for?

358 Security Prison Mesh is used for:
• Prisons and detention centres.
• Utility facilities like power stations and water plants.
• Airports and transportation hubs.
• Schools and educational facilities requiring secure boundaries.
• Commercial and industrial sites protecting valuable assets.

Q. Why is it called "358 Mesh"?

The term "358" refers to the mesh dimensions: 3" x 0.5" aperture made with 8-gauge wire.

Q. Can 358 Mesh be customised?

Yes, it is available in various heights, finishes, and with optional add-ons like electric fencing or razor wire.

Q. How long does 358 Mesh last?

With proper treatment (galvanisation or powder-coating), it can last 20+ years, even in harsh conditions.

Q. Is 358 Mesh suitable for residential use?

While highly secure, its industrial appearance may not suit residential properties unless security is the top priority.
